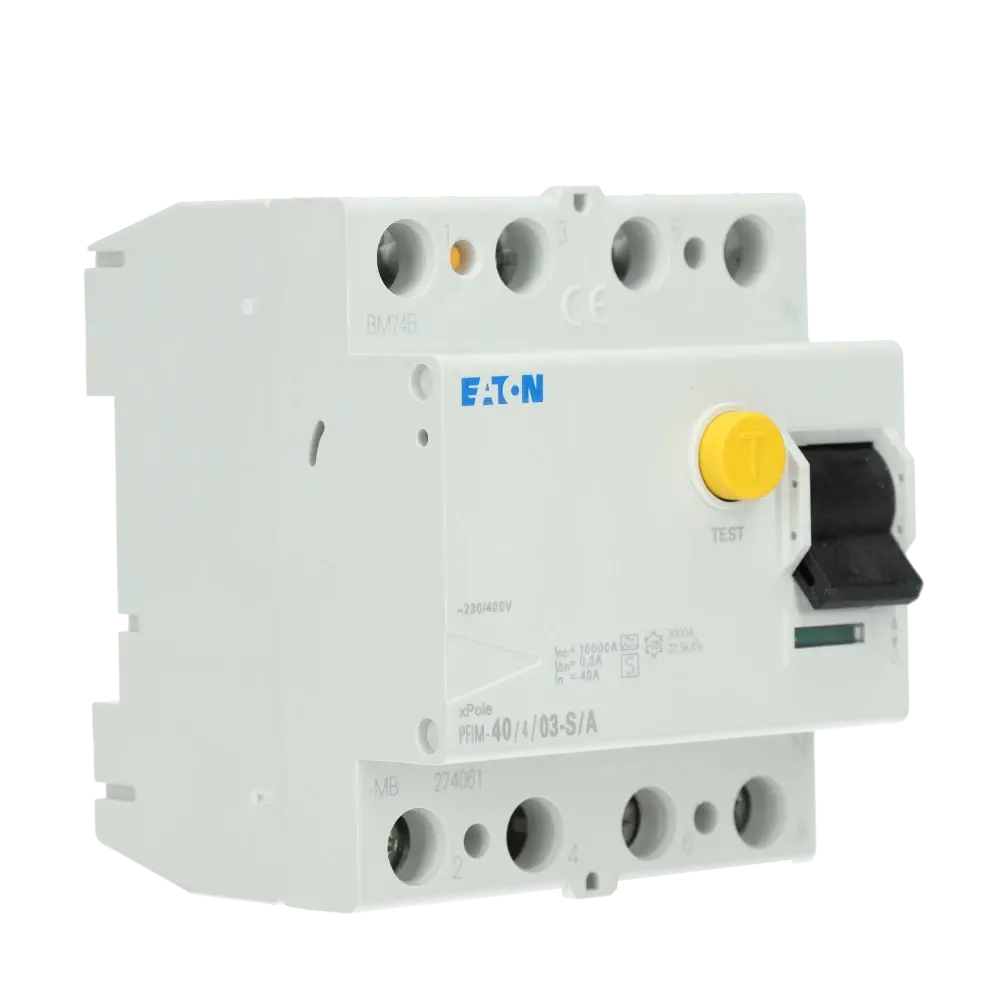

Aardlekschakelaar (RCCB) PFIM 40A, 4P, 300mA, type S/A
High-quality residual current operated circuit-breaker with overcurrent protection; mains voltage-independent; red/green contact position indicator; guide for secure terminal connection; 3-position DIN-rail clip that makes it possible to remove the unit from an existing busbar system; comprehensive range of accessories that can be retrofitted; large selection of rated fault currents; rated operational currents of up to 40 A; tripping characteristics B, C, D; rated making and breaking capacity of 10 kA; suitable for use outdoors (temporary construction site power and outdoor distribution boards) at temperatures as low as -25°C
| Montagewijze | DIN-rail |
| Beschermingsgraad (IP) | IP20 |
| Kleur | Grijs |
| Spanningstype | AC |
| Nom. (meet)stroom | 40.0A |
| Nom. foutstroom | 0.3A |
| Type lekstroom | A |
| Vervuilingsgraad | 2.0 |
| Breedte in module-eenheden | 4.0 |
| Frequentie | 50 Hz |
| Nom. afschakelvermogen IEC 60947-2 | 0.0kA |
| Met vergrendelingsvoorziening | True |
| Omgevingstemperatuur tijdens bedrijf | -25.0,60.0°C |
| Aantal polen | 4.0 |
| Inbouwdiepte | 60.0mm |
| Kortsluitvastheid (Icw) | 10.0kA |
| RAL-nummer (vergelijkbaar) | 7035.0 |
| Schakelmateriaalbreedte | 70.0mm |
| Schakelmateriaalhoogte | 80.0mm |
| Schakelmateriaaldiepte | 76.0mm |
| Aansluitbare geleiderdoorsnede eendraads | 1.5,35.0mm² |
| Aansluitbare geleiderdoorsnede meerdraads | 1.5,16.0mm² |
| Stootstroomvastheid | 5.0kA |
| Nom. isolatiespanning Ui | 440.0V |
| Nom. afschakelvermogen EN 60898 | 0.5kA |
| Nom. stoothoudspanning (Uimp) | 4.0kV |
| Nevenapparaat mogelijk | True |
| Selectieve bescherming | True |
| Kortstondigvertraagd type | False |
| Verliesvermogen | 8.8W |
| Explosieveilig | False |
| Maat (conform DIN 43880) | 1.0 |
